User manual

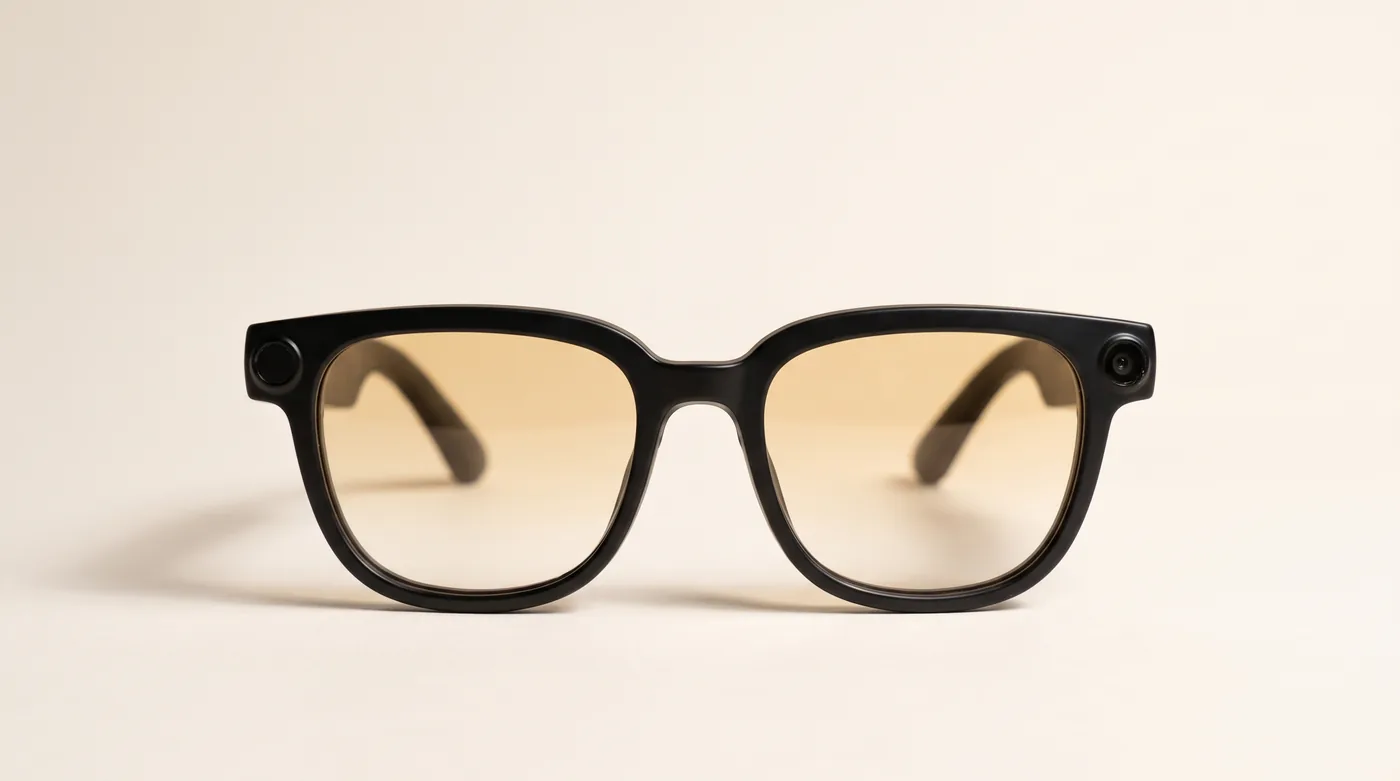

Know your Vista Pro AG66

First five minutes

Scan to download the EYEVUE app, or search "EYEVUE" on Google Play or the App Store. The links: Google Play · App Store.

1. Charge the glasses fully with the included magnetic cable and a plain 5V/1A charger. Do not use a fast charger.
2. Hold the side button for 3 seconds to power on. The glasses power off on their own after 5 minutes of sitting unused.
3. Download the EYEVUE app from Google Play or the App Store (Android 8 or iOS 13 and up) and create an account.
4. In the app, open Home, tap Connect Device, and select your glasses from the list. A ding-dong sound means you are connected.
5. Allow the permissions the app asks for. Photo and video transfer runs over fast Wi-Fi 6 and only works with those permissions on.

The side button

• Power onHold for 3 seconds.
• Power offHold for 5 seconds.
• Take a photoShort press.
• Record videoHold for 2 seconds to start; short press to stop.
• Record audioPress twice to start; short press to stop.
• CallsShort press to answer, hold 2 seconds to reject, short press to hang up.
• Exit the AI assistantShort press during a conversation.
• Factory resetHold for 8 seconds. This erases the files and settings on the glasses.

The touch area and lens tint

• Play or pause musicTap once.
• VolumeSwipe forward to turn it up, backward to turn it down.
• Next trackTap twice.
• Previous trackTap three times.
• Wake the AI assistantSay "Hey Funseek" while connected to the app.
• Enter lens tint modeHold the touch area for 3 seconds. A sound confirms you are in.
• Darker or lighterIn tint mode, swipe forward to darken and backward to lighten, through three levels.
• Exit tint modeHold for 3 seconds again, or just wait 5 seconds and it exits on its own.

Good to know about the battery

• Photos and video use the most power.
• Below 15 percent battery, photo and video switch off to protect the battery. They come back after charging.
• Below 20 percent, transfers to your phone pause. They resume after charging.
• Charge only with the included magnetic cable and a plain 5V/1A charger. Fast chargers can damage the battery.

Removing and fitting the lenses

1. Your Vista Pro AG66 comes with photochromic transition lenses in the kit: they darken outdoors in sunlight and clear up indoors, with no battery needed.
2. To remove a lens: hold the frame's outer edge with your index and middle fingers, then press the lens from the inside out with both thumbs until it pops free. Do the same on the other side.
3. To fit a lens: line it up with the frame from the inside, hook one edge in at an angle, then press it outward with your thumbs until it seats. Adjust gently, then do the other side.
4. Work over a soft surface, and never force a lens that is not lining up.

Keep it working, keep it safe

• The Vista Pro AG66 is dust and splash resistant (IP54), not waterproof. Rain drizzle is survivable; soaking, swimming, and charging while wet are not.
• The frame material is soft. Put the glasses down gently, and stop using them if any part breaks, so you do not get scratched.
• The camera light is there for other people's privacy. Hidden or secret recording is prohibited; follow Philippine law on privacy and recording, and use the camera openly.
• Keep the glasses away from small children; they contain a battery and small parts.
• Do not open or repair the glasses yourself. Bring them to the seller.
• The glasses contain a battery. Do not throw them in household rubbish; bring them to an e-waste collection point.

Warranty terms

• Cokian products come with a 3-month limited warranty from the date of purchase, covering defects in materials and workmanship under normal use.
• 7-day replacement: if your Vista Pro AG66 has a defect within 7 days of purchase, bring it back with the receipt and the complete packaging and the seller replaces it with a new unit instead of repairing it.
• To make a claim, bring the product, your official receipt, and the packaging to the seller you bought it from. The seller checks the product and arranges repair or replacement.
• The warranty does not cover damage from drops, water, heat, misuse, unauthorised repair or opening, use with incompatible chargers, or normal wear such as scratches and battery ageing.
• Recordings and files are not covered. Transfer your photos and videos to your phone regularly.
• Consumables and accessories such as cables, spare lenses, and packaging are not covered.
• This warranty is in addition to your rights under Philippine consumer law, including the Consumer Act of the Philippines (Republic Act No. 7394).
